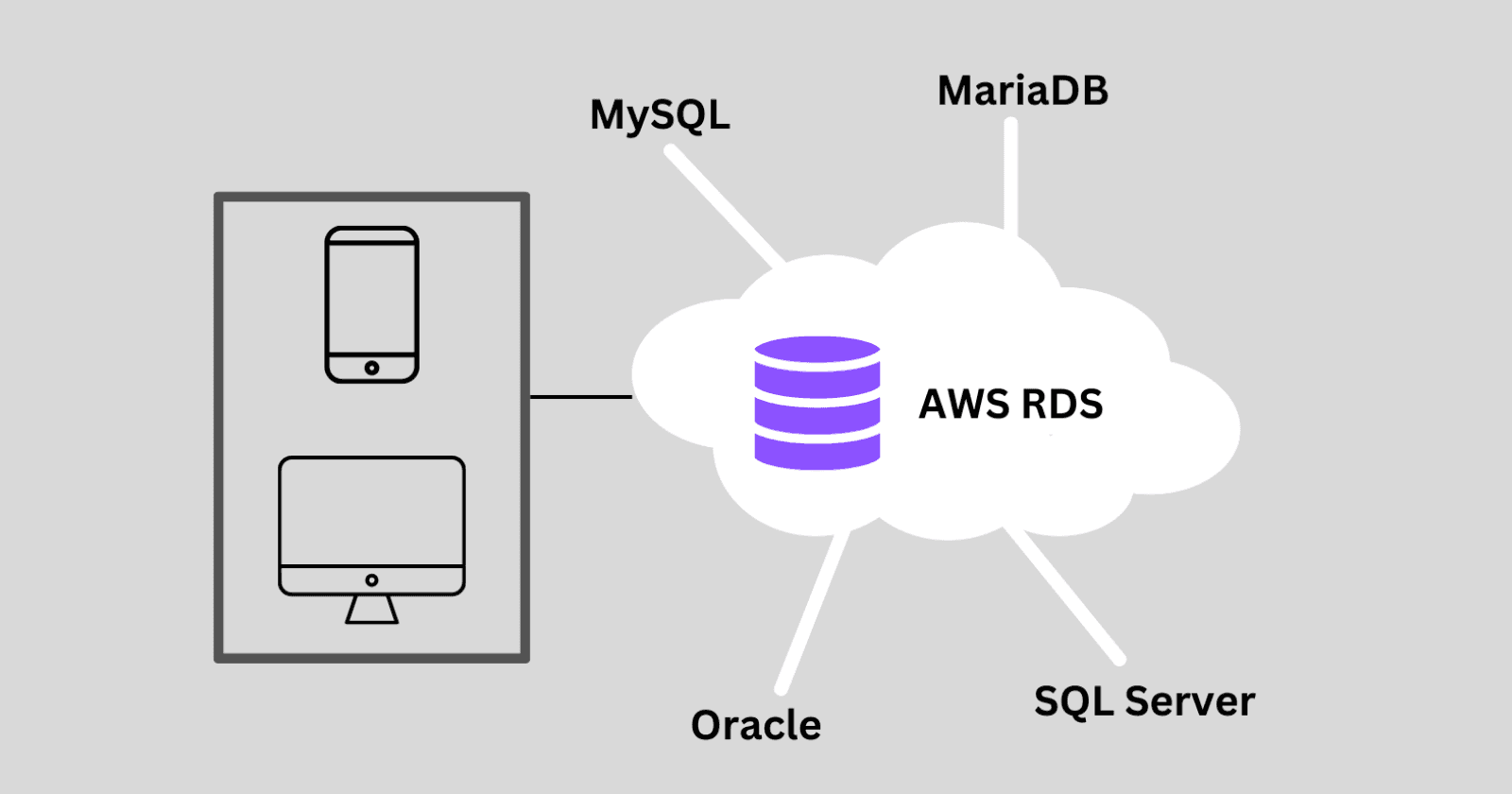

In today's digital world, data is everything. Every organization has to deal with a large amount of data, and they need a reliable and scalable solution to manage it. This is where AWS RDS comes into play. AWS RDS is a managed database service that provides you with a reliable and scalable solution for managing your databases in the cloud. In this blog, we will guide you through the steps of creating an AWS RDS MySQL instance, which you can use to store and manage your data.
Before we get started, let's understand why we need AWS RDS. AWS RDS offers several benefits over traditional database management solutions. First, it is fully managed, which means that AWS will handle all the operational aspects of managing the database. This includes backups, software updates, and security patches. This allows you to focus on your core business activities rather than worrying about database management.
Second, AWS RDS offers scalability. You can easily scale up or down your database instance as your business needs change. This allows you to pay only for what you use, reducing your costs and increasing your flexibility.
Now that we understand the benefits of AWS RDS, let's get started with creating an AWS RDS MySQL instance.
Step 1: Create an AWS RDS MySQL instance
You can create an AWS RDS MySQL instance, through following these steps:
Log in to the AWS Management Console.
Click on "Services" and then click on "RDS" under the "Databases" section.
Click on the "Create database" button.
Choose "MySQL" as the database engine.
Choose the version of MySQL you want to use.
Choose the instance size based on your needs.
Set the database name, username, and password.
Choose the availability zone.
Set the backup retention period and preferred backup window.
Click on the "Create database" button.
This is the screenshot of that window page.
Step 2: Set the inbound rules for the security group
In AWS RDS, security groups act as virtual firewalls that control the incoming and outgoing traffic of the database instances. Inbound rules define the source of the traffic that is allowed to connect to the database instance.
Step 2.1: Open the RDS console
To set the inbound rules for the security group in AWS RDS, you need to first open the RDS console. To do this, follow these steps:
Log in to your AWS account.
Click on "Services" in the top navigation menu.
Select "RDS" from the list of services.
Step 2.2: Select the security group
Once you have opened the RDS console, select the security group that you want to modify. To do this, follow these steps:
Click on the "Databases" tab in the navigation pane.
Click on the name of the database instance whose security group you want to modify.
Click on the "VPC security groups" link under the "Security" section.
Step 2.3: Edit the inbound rules
To edit the inbound rules of the security group, follow these steps:
Select the security group that you want to modify.
Click on the "Inbound rules" tab.
Click on the "Edit inbound rules" button.
Step 2.4: Add a new rule
To add a new inbound rule, follow these steps:
Click on the "Add rule" button.
Select the type of rule that you want to add from the drop-down menu.
Enter the required information, such as the source IP address, port range, and protocol.
Step 2.5: Save the changes
Once you have added the new rule, click on the "Save rules" button to save the changes. Your new inbound rule will be added to the security group.
Step 3: Connect to the AWS RDS MySQL instance
Once you have created the AWS RDS MySQL instance, you need to connect to it. To do this, follow these steps:
Log in to the AWS Management Console.
Click on "Services" and then click on "RDS" under the "Databases" section.
Click on the name of the MySQL instance you just created.
Click on the "Connectivity & security" tab.
Note down the endpoint of the database instance.
Click on the "Create new security group" button.
Set the inbound rules for the security group. This will allow access to the MySQL instance from your local machine.(see step 2)
Click on the "Create" button.
Open your MySQL client and connect to the MySQL instance using the endpoint and credentials you noted down in step 5.
Step 4: Connecting the RDS instance with Python
Connecting to an RDS instance from Python can be useful for accessing and manipulating data stored in the database. In this blog, we will go through the steps to connect to an RDS instance from Python.
Step 4.1: Install the necessary packages
pip install pymysql
We have already created RDS instance and set the inbound rules for the security group as done in step 2 and 3.
Step 4.2: Create a database and table
Once you have created an RDS instance, you can create a database and table. For this example, we will create a simple users table with columns for id, name, and email. You can create the table using the following SQL command:
CREATE TABLE users (
id INT AUTO_INCREMENT PRIMARY KEY,
name VARCHAR(255),
email VARCHAR(255)
);
Step 4.3: Connect to the RDS instance from Python.
Once we have the necessary packages installed, the RDS instance created, the database and table created, and the inbound rules set, we can connect to the RDS instance from Python using the pymysql package. Here is an example code snippet:
import pymysql
host = '<YOUR_RDS_ENDPOINT>'
port = 3306
user = '<YOUR_DATABASE_USERNAME>'
password = '<YOUR_DATABASE_PASSWORD>'
database = '<YOUR_DATABASE_NAME>'
connection = pymysql.connect(
host=host,
port=port,
user=user,
password=password,
database=database
)
cursor = connection.cursor()
cursor.execute('SELECT * FROM users')
results = cursor.fetchall()
for result in results:
print(result)
cursor.close()
connection.close()
In the above code, we first set the database credentials (replace <YOUR_RDS_ENDPOINT>, <YOUR_DATABASE_USERNAME>, <YOUR_DATABASE_PASSWORD>, and <YOUR_DATABASE_NAME> with your own values). We then use pymysql.connect() to connect to the database and create a cursor object.
We then execute a SQL query to select all records from the users table and fetch the results using cursor.fetchall(). Finally, we print the results and close the cursor and connection.
Let's understand each line of code
To establish a connection to the RDS instance from Python, we will need to use a database connector. There are several connectors available for MySQL, but in this tutorial, we will use the popular mysql-connector-python library.
To install it, you can use pip:
pip install mysql-connector-python
Once the installation is complete, you can import the library in your Python script:
import mysql.connector
To connect to the RDS instance, you will need the endpoint, username, and password that you specified when creating the instance. You will also need the name of the database that you want to connect to (in our case, it is mydatabase). You can define these values as variables:
import mysql.connector
endpoint = 'my-rds-instance.123456789012.us-east-1.rds.amazonaws.com'
username = 'admin'
password = 'mypassword'
database = 'mydatabase'
Then, you can use the connect() method of the mysql.connector module to establish a connection:
import mysql.connector
endpoint = 'my-rds-instance.123456789012.us-east-1.rds.amazonaws.com'
username = 'admin'
password = 'mypassword'
database = 'mydatabase'
cnx = mysql.connector.connect(user=username, password=password,
host=endpoint, database=database)
The connect() method returns a connection object, which you can use to interact with the database.
Create a Cursor Object
import mysql.connector
endpoint = 'my-rds-instance.123456789012.us-east-1.rds.amazonaws.com'
username = 'admin'
password = 'mypassword'
database = 'mydatabase'
cnx = mysql.connector.connect(user=username, password=password,
host=endpoint, database=database)
cursor = cnx.cursor()
Execute SQL Queries
With the cursor object, you can execute SQL queries. For example, to create a table in the database, you can use the execute() method:
import mysql.connector
endpoint = 'my-rds-instance.123456789012.us-east-1.rds.amazonaws.com'
username = 'admin'
password = 'mypassword'
database = 'mydatabase'
cnx = mysql.connector.connect(user=username, password=password,
host=endpoint, database=database)
cursor = cnx.cursor()
create_table_query = '''
CREATE TABLE users (
id INT(11) NOT NULL AUTO_INCREMENT,
name VARCHAR(255) NOT NULL,
email VARCHAR(255) NOT NULL,
PRIMARY KEY (id)
)
'''
cursor.execute(create_table_query)
The execute() method on the cursor object is used to execute SQL queries on the database. Here, we are executing a SQL CREATE TABLE query to create a new table.
Commit the changes
After executing SQL queries, you need to commit the changes to the database using the commit() method on the connection object.
conn.commit()
Close the cursor and connection objects
After you are done working with the database, you should close the cursor and connection objects using the close() method.
cursor.close()
conn.close()
Closing the cursor and connection objects is important to free up any resources that were allocated to them.
And that's it! You have now connected to an RDS instance from Python and performed various database operations.
Conclusion
In this blog, we learned how to create an RDS instance of MySQL on AWS and connect it with Python using the mysql-connector-python module. We also saw how to create a table in the RDS instance from Python. This knowledge will be useful for anyone who wants to create a cloud-based managed database service and connect it with their Python application.
